DONANIM ÖZELLİKLERİ | |
---|---|
Arabirim | • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Sayısı | Fanless |
Harici Güç Kaynağı | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Paket Yönlendirme Hızı | 8.928 Mpps |

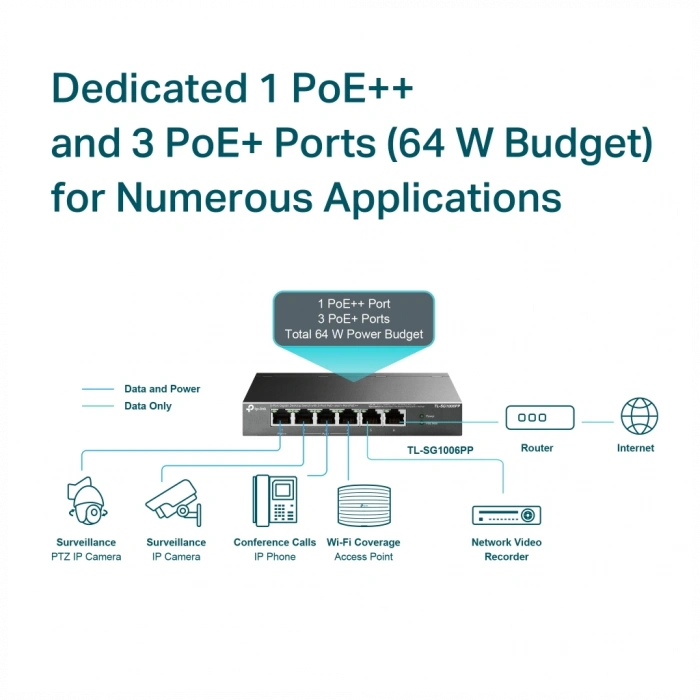

PoE Portları (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W |
MAC Adres Tablosu | 4K |
Switching Kapasitesi | 12 Gbps |
Boyutlar ( W X D X H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
Maks. Güç Tüketimi | • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) |
Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
YAZILIM ÖZELLİKLERİ | |
---|---|
Gelişmiş Özellikler | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
Transfer Metodu | Store-And-Forward |
DİĞERLERİ | |
---|---|
Sertifika | FCC, CE, RoHS |
Paket İçeriği | • TL-SG1006PP • Power Adapter • Installation Guide |
Ortam | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
PoE Desteği | 4 Adet |
Port Sayısı | 6 Adet |
Rack Kasa | Uyumlu Değil |
SFP Yuva | Yok |
Veri Transfer Hızı | 1Gbps |
Yönetim | Yönetilemez |
